Hardware · TraceSense

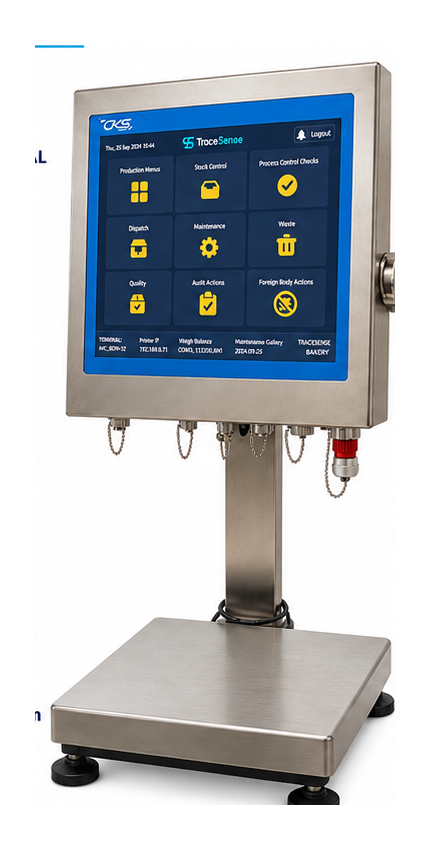

Forge 17 industrial touchscreen terminal
A robust, hygienic industrial terminal designed for TraceSense factory execution workflows — recipe weigh-up, process checks and electronic batch records on the production line.
At a glance
Built for demanding production environments
- 17" PCAP touchscreen 10-point multi-touch · 1280 × 1024 · 400 cd/m²
- 304 stainless steel Rugged, hygienic industrial construction
- IP66 / IP67 / IP69K Protection options for washdown and harsh areas
- Industrial Panel PC Windows IoT options · Ethernet, USB and serial
- Factory integration Designed for scales, scanners and operator workflows
- 3-year warranty Standard RTB · extendable to 5 years
Technical overview
Forge 17 specification highlights
Full dimensions, compute options and environmental ratings are in the downloadable PDF. Here’s a quick summary for engineering and production teams.
| Display | 17.0" (4:3) · 1280 × 1024 · 1000:1 contrast |
|---|---|
| Touch | PCAP · 4 mm polycarbonate cover · up to 10 points |
| Enclosure | 304 stainless · cased / bezel / uncased mounting |
| Size (cased) | 420 × 419.43 × 72.5 mm · approx. 10 kg |
| Power | 90–264 VAC or 9–36 VDC |
| Environment | −5°C to +50°C operating · IP66 / IP67 / IP69K options |
| Compute | Celeron J6412, N100 or Core i5 options · up to 64 GB RAM |
| OS | Windows 10 / 11 IoT Enterprise LTSC |
Pair with TraceSense
Run recipe weighing, process checks, stock, dispatch and maintenance on the same terminal your operators already use.
- Electronic batch records at the weigh point
- Lot capture with scale and scanner support
- Audit-ready sign-offs on the line
Enquire
Ask about Forge 17
Tell us about your site and weigh points — we’ll come back with terminal options, mounting and how Forge 17 fits with TraceSense.
Get in touch
